Why an 18000 BTU split aircon suits bigger rooms
An 18000 BTU split aircon sits in the middle-to-larger residential and light commercial range. It is often chosen where a 12000 BTU unit will struggle, but a full cassette or ducted system is more than you need. For Johannesburg heat, afternoon sun through large windows, and offices that fill up by midday, this size gives a better balance of comfort and running cost.
It works well for rooms around 30 m2 to 45 m2, depending on ceiling height, insulation, glass area and how many people use the space. A north-facing lounge in Sandton or a meeting room in Midrand may need careful sizing, especially if there are computers, fridges or retail lighting adding heat. We always check the room first because oversizing can cause short cycling, while undersizing leaves the unit running flat-out and still not keeping up.
- Suitable for larger lounges and family rooms
- Good for meeting rooms, boardrooms and small shops
- Can handle open-plan areas better than smaller split units
- Useful where summer heat and load-shedding backups affect comfort
Sizes, types and finish options

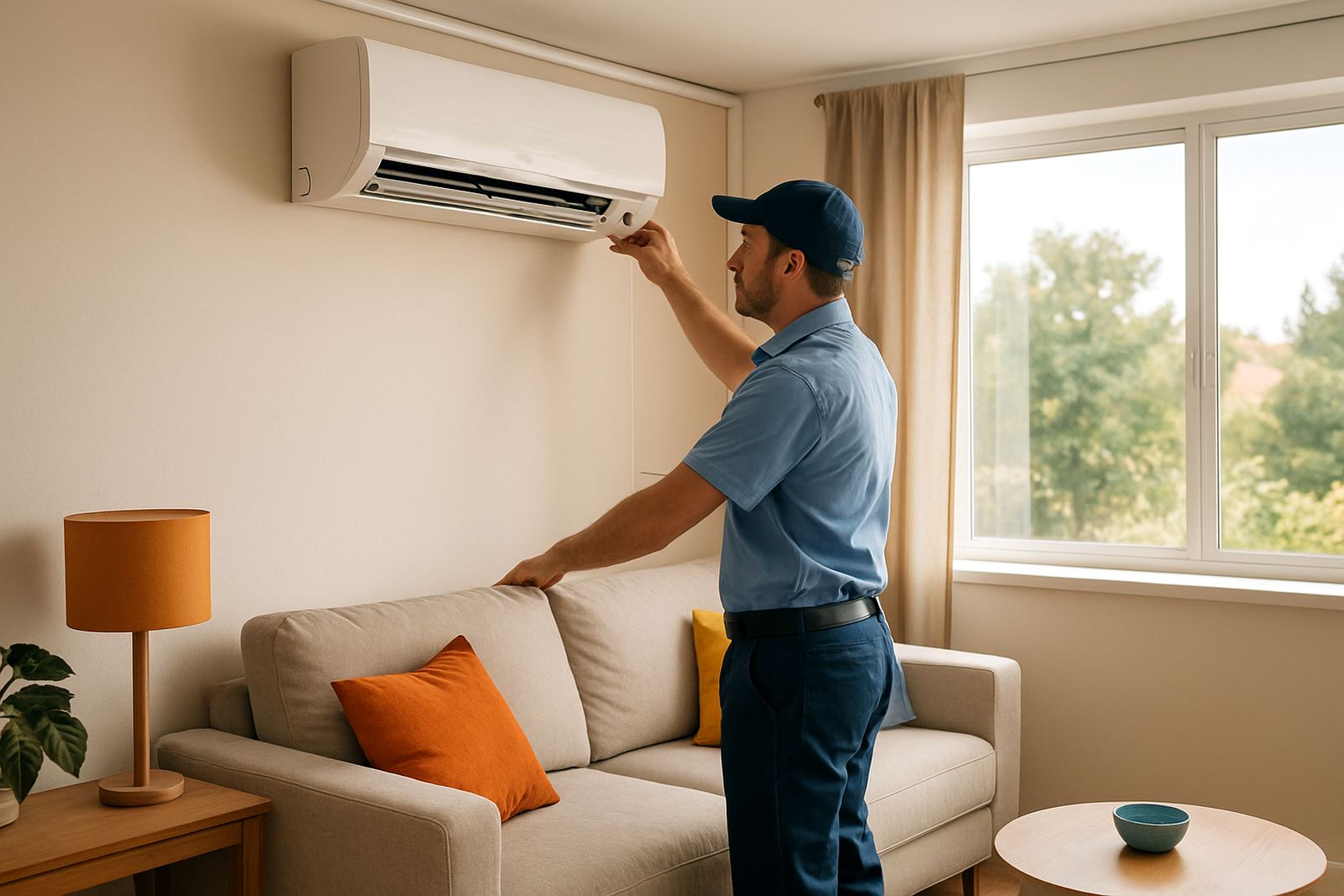

Most 18000 BTU split aircons are sold as a wall-mounted indoor unit with an outdoor condenser. Inverter models are popular because they adjust output as the room cools, which helps with electricity use and keeps temperatures steadier. Fixed-speed units are still available for some jobs where the budget is tighter or the usage pattern is simple.
You can choose between cooling-only or reverse-cycle heat pump models. In Gauteng, reverse-cycle is worth considering for winter mornings, especially in homes in Johannesburg North or offices that open early. Some units are designed for quieter operation, which matters in consulting rooms, bedrooms above garages, and small offices where noise can become a nuisance.
- Wall-mounted split systems
- Cooling-only or heating and cooling options
- Standard inverter or fixed-speed versions
- Indoor fascia colours usually white, with compact outdoor units for limited balcony or yard space
Where this capacity fits best
This size is often installed in larger family lounges, upstairs entertainment rooms, studio spaces, small boardrooms and retail floors. It also suits back offices, reception areas and salons where people come and go through the day. In places like Randburg and the East Rand, where premises can face direct afternoon sun, an 18000 BTU unit often gives the best result when the room has decent insulation and the doors are kept closed.
If the room is very open to adjoining areas, the aircon may have to work harder than expected. That is why site conditions matter more than the headline size alone. A shop with open doors on a busy strip in Midrand will lose cooled air faster than a closed office suite, so we factor in traffic, window size, ceiling height and the building layout before recommending the unit.
For homes, this size is a good match where the family wants one strong unit rather than several smaller ones. For offices, it is often used in a single larger room instead of splitting the space into multiple zones. That can simplify maintenance and lower the number of outdoor units you need on the property.
Installation, drainage and power needs
Supply-and-fit for an 18000 BTU split aircon normally includes mounting the indoor and outdoor units, connecting the refrigerant pipes, fitting the drainage line and testing the system under load. The outdoor unit needs solid support on a wall bracket or stand, with enough clearance for air movement and service access. In humid areas or where the unit is exposed to rain, correct positioning matters because poor airflow and water pooling shorten the life of the equipment.
Power requirements depend on the model, but many 18000 BTU units use a dedicated electrical supply with the correct isolator and protection. We check the existing wiring, breaker capacity and earth connection before installation. In some buildings the electrical point is ready, in others a separate circuit may be needed. During load-shedding, an inverter model may restart more smoothly than an older fixed-speed unit, though the backup system must still be sized properly.
- Needs a suitable wall or floor position for the outdoor unit
- Drainage must run freely to avoid dripping inside or across paths
- Electrical supply should be checked before installation
- Long pipe runs can affect performance and may need a slight re-quote
What refrigerant and performance details to confirm
When ordering, check the refrigerant type, cooling capacity, operating temperature range and noise rating. The refrigerant type matters for serviceability and compliance, and the correct gas charge has to match the pipe length and installation method. A properly installed unit should cool steadily without icing, rattling or pushing warm air from the outdoor unit back into the room.
Look at the rated input power and energy efficiency figures if you want to compare models fairly. For offices and shops, the sound level is also important because a unit that is too loud becomes irritating after a few hours. Ask whether the unit can handle frequent starts and stops, which is useful for spaces that open and close through the day. If you are replacing an older system, we can compare the current unit to what is already installed so the new size is not guesswork.
- Confirm refrigerant type and correct gas charge
- Check noise level for rooms with people on calls or meetings
- Ask for the full installed pipe length allowance
- Make sure the model suits your power supply and backup system
Care, servicing and replacement planning
An 18000 BTU split aircon will perform better if the filters are cleaned regularly and the outdoor coil is kept free of dust, leaves and spider webs. In Gauteng, dust build-up is common and can reduce airflow quicker than people expect. If the unit runs every day in a business premises, service intervals should be planned rather than left until there is a fault.
For homes, a routine service before summer helps spot low gas, blocked drainage and worn fans before the first hot spell. For offices, annual or six-monthly maintenance may be better, especially where staff comfort affects productivity. If the system is over 8 years old and repairs are becoming frequent, it is worth checking whether a replacement will cost less over time than keeping the old unit limping along. We also handle relocations when a room changes use or an office layout is altered.
Our team in Johannesburg North works with homes and businesses across Sandton, Randburg, Midrand, the West Rand and the East Rand. We can supply the unit, fit it neatly, and set up a maintenance plan so you are not left without cooling when the weather turns and the queues at call-outs get busy.
Key facts
| Capacity | 18000 BTU |
|---|---|
| Typical room size | About 30 m2 to 45 m2, depending on heat load and layout |
| System type | Split air conditioner, wall-mounted indoor unit with outdoor condenser |
| Options | Cooling-only or reverse-cycle heating and cooling, inverter or fixed-speed |
| Power supply | Dedicated electrical circuit recommended, subject to model and site conditions |
| Typical use | Large lounges, meeting rooms, small shops and open-plan offices |
